Structural Precision

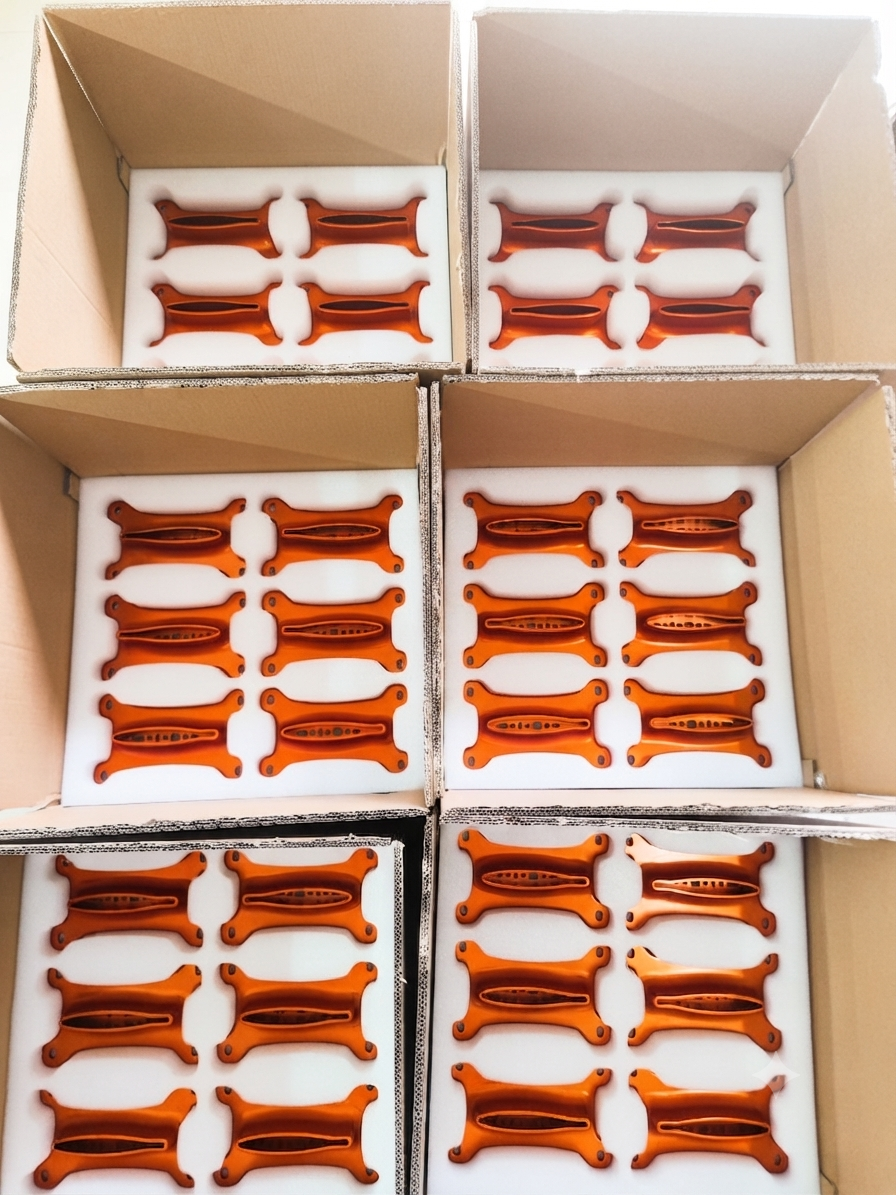

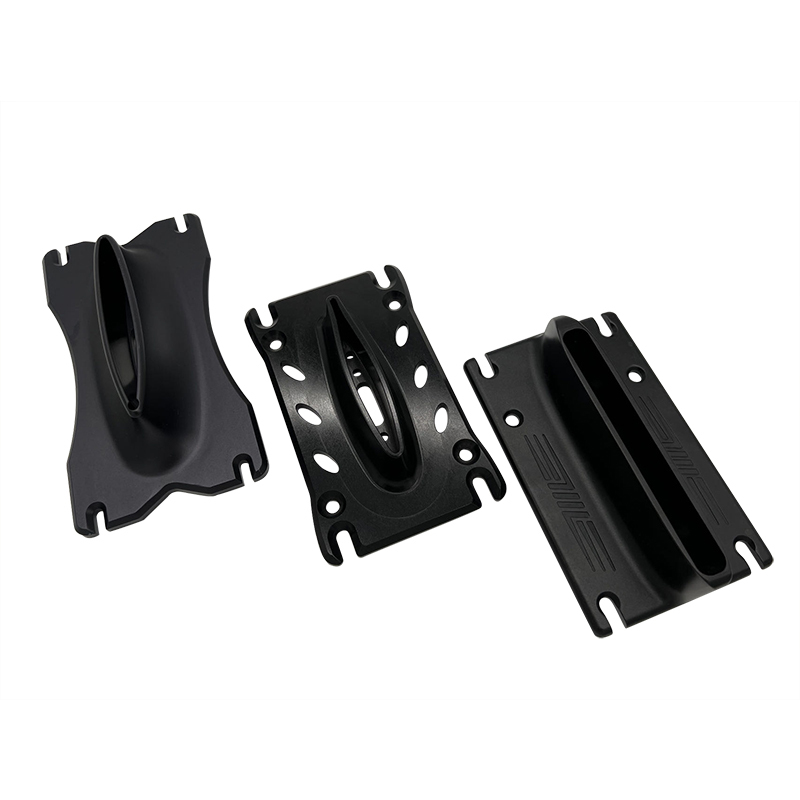

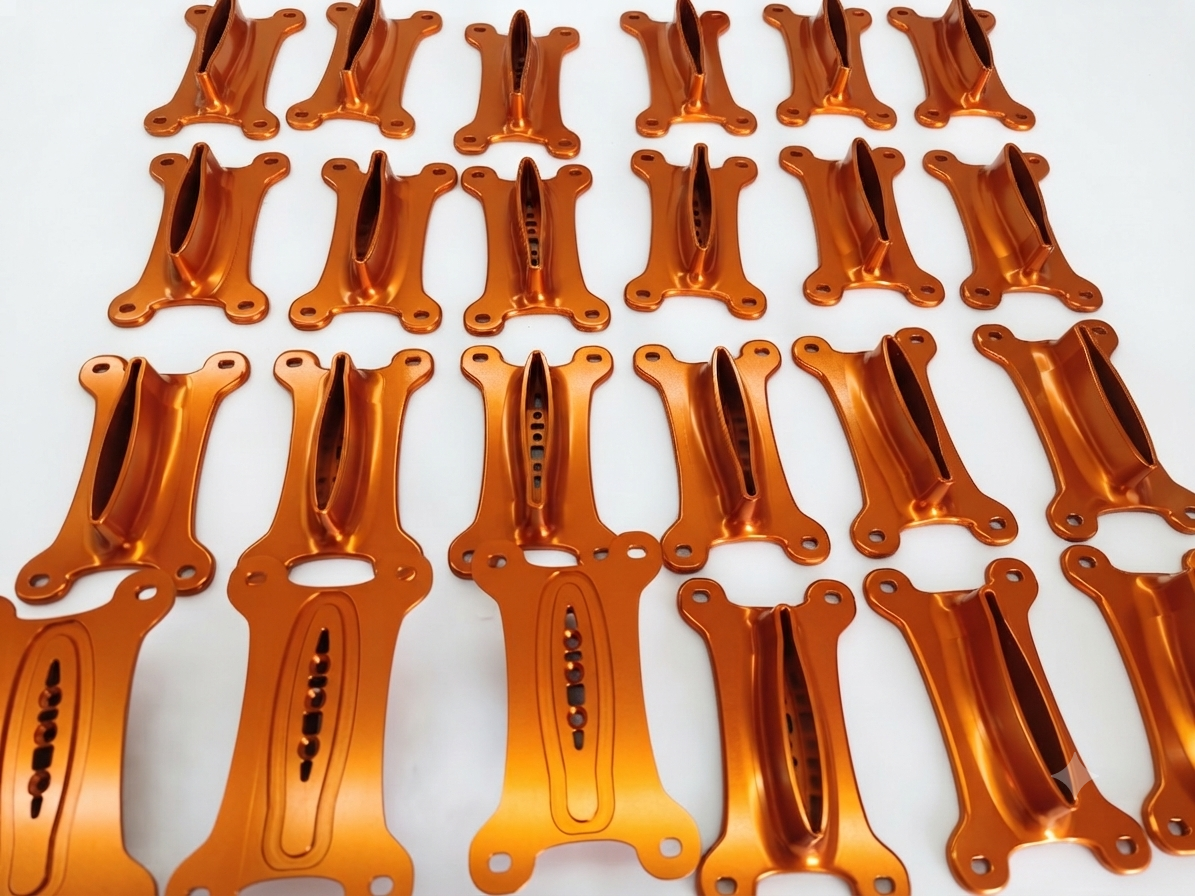

Our mounting plates are crafted using high-precision CNC milling from solid aluminum billets. Designed to handle the extreme vertical and torsional loads generated during foiling, these plates ensure a rigid, play-free connection between the mast and the board hull.

Every plate features optimized stress-distribution geometry, ensuring that weight is minimized while structural integrity is maximized.

Product Description

Application Focus for Marine and Foiling Equipment Manufacturers

This precision CNC aluminum mounting plate is engineered primarily for use by hydrofoil parts manufacturer and efoil components manufacturer professionals who demand exact fit and reliable mounting performance. Serving as a critical interface between mast adapters and foil boards, it supports high mechanical loads during foiling activities. Its compatibility with standard board track systems ensures versatile integration in diverse foil board assemblies. By catering to the exacting standards of custom hydrofoil components production, this solution meets the operational needs of production engineers, OEMs, and system integrators requiring consistent quality and repeatability.

Advanced Technical Specifications Enhancing Structural Integrity

Crafted from high-strength 7075-T6 aluminum billets, this mounting plate is produced through advanced 5-axis CNC precision milling, achieving tolerances within ±0.01mm. The custom cnc machined parts exhibit an optimized geometry for uniform stress distribution and weight reduction. The marine-grade hard anodized surface provides excellent galvanic corrosion resistance and durability in harsh saltwater environments. Universal slot patterns ensure flexible adaptation to a range of mast adapters and foil board tracks. The structural design eliminates play and flex, optimizing power transfer and rider stability, meeting rigorous engineering performance criteria demanded by contract manufacturer processes.

Industry Applications and Integration in Hydrofoil Production

Tailored for industries focused on hydrofoil and efoil systems, the mounting plate is an essential element in constructing and upgrading foil board assemblies. Its robust performance under extreme vertical and torsional loads supports competitive efoil systems requiring precise power transmission. The component facilitates prototype testing and retrofitting in research and development environments. By streamlining supply chain coordination and ensuring manufacturing precision, it assists hydrofoil parts manufacturer partners in scaling production efficiently. The product enhances system reliability and compliance with marine engineering standards, offering measurable value in demanding operational contexts.

Product Advantages

Design and Structural Adaptability for Integration

The aluminum mounting plate’s design leverages stress-distribution geometry to reduce weight without compromising strength, a key feature for custom hydrofoil components production. Its compatibility with universal slot patterns allows straightforward integration into existing foil board track systems, enabling hydrofoil parts manufacturer operations to streamline assembly. The precision manufacturing methods employed allow contract manufacturer partners to deliver repeatable quality, reducing defects and enhancing structural consistency. This modular and engineering-driven design fosters ease of upgrading and customization for OEM and efoil components manufacturer clients.

Optimized Performance Delivering User Confidence

With a rigid connection that eliminates structural flex, this plate ensures maximum power transfer from the mast to the foil board, essential for maintaining stability during dynamic operations. The marine-grade anodized finish guards against corrosion, extending product lifespan in saltwater conditions. The precise tolerances achieved through custom cnc machined parts manufacturing contribute to improved system reliability and safety. This solution supports efficient installation processes by manufacturers, reducing downtime and leading to higher throughput. Consequently, it adds measurable operational value to hydrofoil parts manufacturer and contract manufacturer supply chains.

Use Scenarios

Hydrofoil Mast Assembly for Competitive Water Sports Manufacturing

In the competitive environment of hydrofoil and efoil equipment production, this mounting plate functions as a critical structural link between the mast adapter and foil board. hydrofoil parts manufacturer facilities benefit from its high-precision design, which enables reliable, play-free mounting essential for optimum power transfer under demanding mechanical loads. The plate’s corrosion-resistant anodized finish ensures compliance with marine durability standards. Integrated into automated CNC machining workflows, it streamlines production cycles and facilitates rapid prototyping to accommodate evolving design specifications within custom hydrofoil components projects.

Structural Retrofits and Upgrades in Marine Engineering Applications

This mounting plate finds application in marine engineering contexts where existing foil board assemblies require upgrades or retrofits to enhance performance and durability. efoil components manufacturer service providers utilize it to replace or augment mast mounting hardware with a solution that meets stringent tolerance and corrosion resistance requirements. It enables engineering teams to maintain system reliability under high torsional forces, while its universal slot geometry supports interpolation with diverse mast adapter types. The component integrates seamlessly with supply chain processes managed by contract manufacturer partners, supporting efficient refurbishment workflows while preserving structural integrity and operational safety.

Technical Specifications
