CAD or drawing
Share the file, drawing revision and any surfaces that cannot drift during manufacturing.
CAD To Custom Metal Parts
CNC Machining Services For Custom Metal Parts
Fanxi Tech helps engineering and procurement teams turn drawings into machined parts. Use its cnc machining services when the project needs milling, turning, prototyping, surface finish planning and custom cnc machining for metal components.

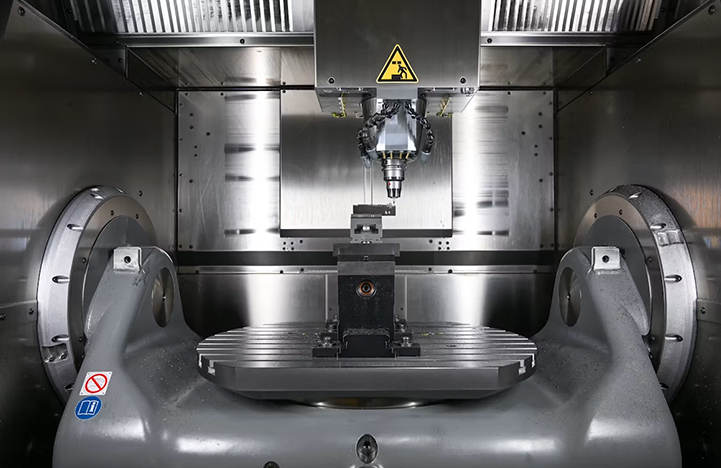

5-axis CNC CNC service visual
±0.01mm Critical-feature discussion
6061-T6 + alloys Material planning start
Start The RFQ With The Part, Not A Generic Order
A useful machining request is a compact engineering brief. These four inputs make the first estimate more practical.
Material and quantity
Name the metal, expected batch size and whether prototype or repeat production is the near-term goal.
Tolerance and finish
Separate critical dimensions from general dimensions, then pair them with the finish requirement.
Application context
Explain whether the part faces load, vibration, assembly alignment, outdoor exposure or repeated motion.
Tolerances, Materials And Finish Belong Together
Precision machining decisions work best when the part geometry, material and surface expectation are discussed as one package.
| Service scope | CNC machining, milling, turning, prototyping and precision production for custom metal parts. |
|---|---|
| Materials named | 6061-T6 aluminum, stainless steel and specialized alloys. |
| Precision language | Use ±0.01mm as a critical-feature conversation for the right project areas, not as a blanket expectation for every dimension. |
| Inspection focus | Surface finish quality and dimension accuracy for high-end components. |
| Design protection | CAD files and client designs should be handled with confidentiality and IP safeguards. |
| Quote inputs | Drawings, material, quantity, finish, tolerance zones, application and any assembly needs. |
The goal is not to ask for the tightest number everywhere. It is to identify which features truly need control and which dimensions can stay practical for cost and manufacturing rhythm.
Match The Route To The Geometry
Process wording should follow the shape of the part instead of being chosen as a label after the drawing is already fixed.
CNC milling
Works naturally for pockets, mounting faces, slots, plates, housings and multi-surface geometry that needs controlled datum relationships.
CNC turning
Fits round or rotational components where diameter, concentricity and face relationships drive the machining plan.
Swiss turning
Belongs in the conversation when small precise turned parts need stable support near the cutting area.
Application Signals Help Shape The Brief
Fanxi Tech connects CNC machining with vehicle and mobility hardware, so the operating environment should travel with the drawing.
Automotive parts
Use load, alignment and surface expectations to separate functional faces from general clearance areas.
View automotive application
Motorcycle components
Vibration, fastening points and finish durability can influence how the part is machined and checked.
View motorcycle application
Scooter parts
Compact mobility parts often need practical tolerance choices around mounting, repeated motion and assembled clearances.
View scooter applicationMachined Part Examples To Anchor The Request
These examples show the kind of metal parts that make a CNC conversation more concrete than a broad capability list.

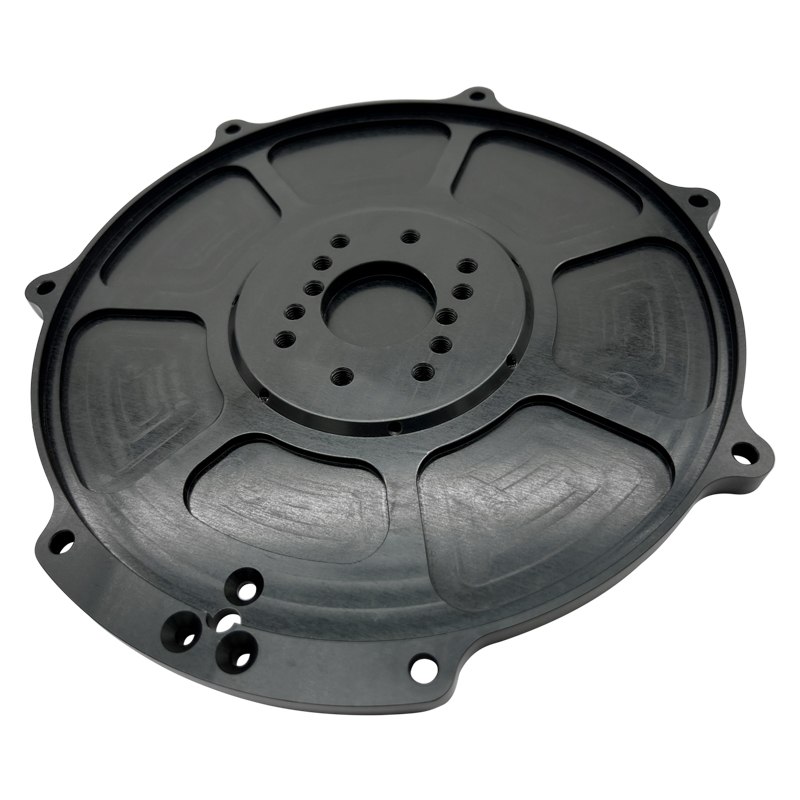

CNC Machined Adapter Flange / Mounting Plate
A practical reference for mounting geometry, bolt patterns and aligned mating surfaces.
View part example

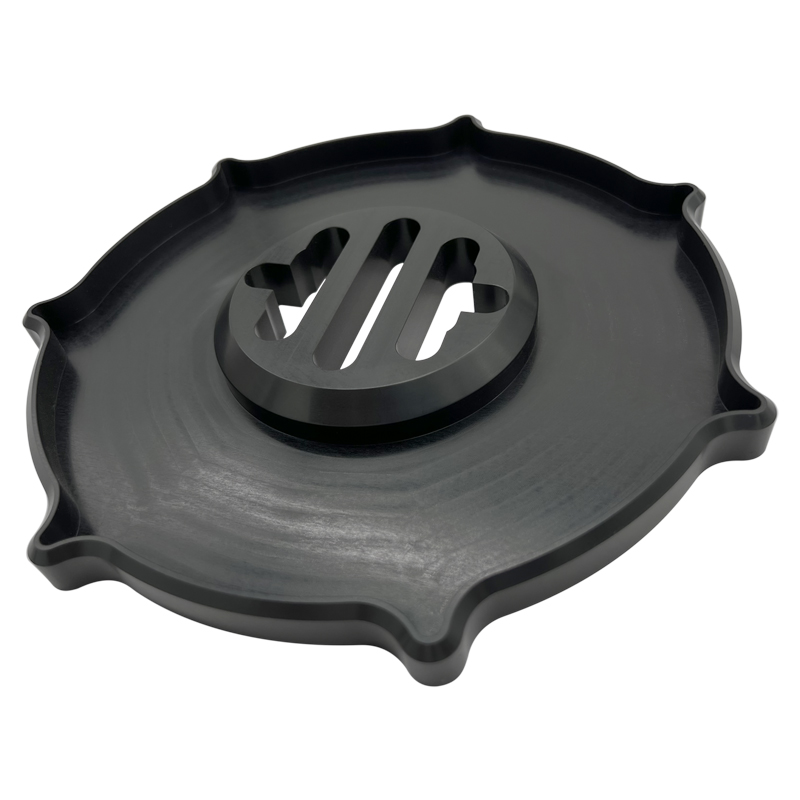

Precision CNC Machined Adapter Flange / Mounting Plate
A useful example when concentricity, datum faces and inspection points need early attention.
View precision example

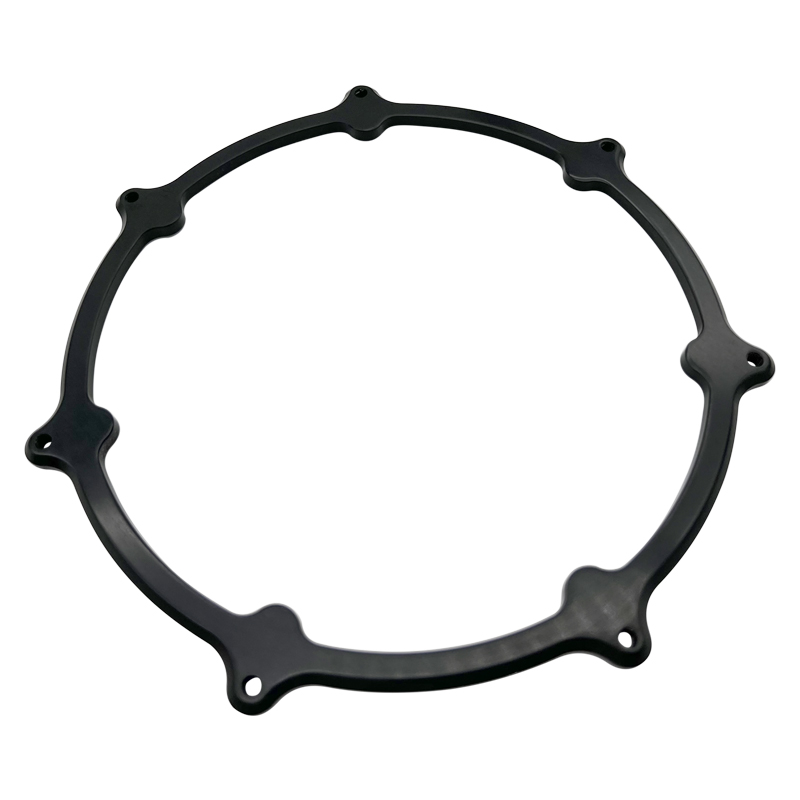

Custom CNC Aluminum Adapter Flange
A closer match for buyers who need tabs, housing interfaces and material selection discussed together.
View custom adapterRelated Reading
Three notes help refine the tolerance language, CAD workflow and process vocabulary before the request is sent.
Read ±0.01mm As A Project Conversation
Clarify which dimensions are critical enough for tight control and which can stay practical for cost and production.
Open tolerance noteMove From CAD File To Finished Component
Frame the project around drawing readiness, material choice, quantity and the checks needed after machining.
Open CAD workflow noteSeparate Milling, Turning And Swiss Turning
Use part geometry and production intent to make the machining term more precise before the quote starts.
Open process noteFAQ
Six focused answers for teams preparing a custom metal part machining request.
What should I prepare before asking for a CNC machining quote?
Prepare the CAD file or drawing, target material, quantity, key tolerance areas, finish requirements, application context and any assembly or confidentiality needs.
Which materials are named for Fanxi Tech CNC machining?
Fanxi Tech works with 6061-T6 aluminum, stainless steel and specialized alloys for CNC machining projects.
Does ±0.01mm apply to every machined part?
Treat ±0.01mm as a critical-component precision capability to discuss for the relevant features of a project, not as a blanket promise for every dimension.
How do milling, turning, and Swiss turning differ?
Milling is useful for many prismatic shapes and pockets, turning fits round or rotational parts, and Swiss turning is usually considered for small precise turned components.
Can Fanxi Tech support surface finish decisions?
Yes. Surface finish quality is part of the CNC machining discussion, and Fanxi Tech provides a Surface Finish Guide for finish planning.
Where can I submit project information?
Use the Fanxi Tech contact page to submit CAD files, material, quantity and project requirements for a tailored quote.
